Double Sided EVA Tape
Cushioning & sealing · Conformable
LubandArt manufactures Double Sided EVA Tape built on a EVA carrier with pressure-sensitive adhesive. Thickness, width, roll length, adhesive system and release liner can be customized according to the substrate, application environment and production requirements.
- Base
- EVA
- Thickness Range
- 0.5 – 6.0 mm
- Temperature Range
- -20 ~ 80 ℃
- ISO 9001 manufacturer
- Test reports for selected models
- Reply within one business day
Jumbo Roll
Master rolls supplied by width and length for converters and die-cutters — ready for your own slitting and converting.
Converted Roll
Slit and rewound to your required width, roll length, liner and core — direct-application rolls for wholesalers and distributors.
Finished / Die-Cut
Die-cut shapes and parts produced to drawing, ready to apply on your assembly line with no further conversion.
Why Choose Double Sided EVA Tape
Soft cushioning that absorbs shock and vibration
Good gap-filling and sealing performance
Conforms to curves and rough surfaces
Easy to die-cut and slit

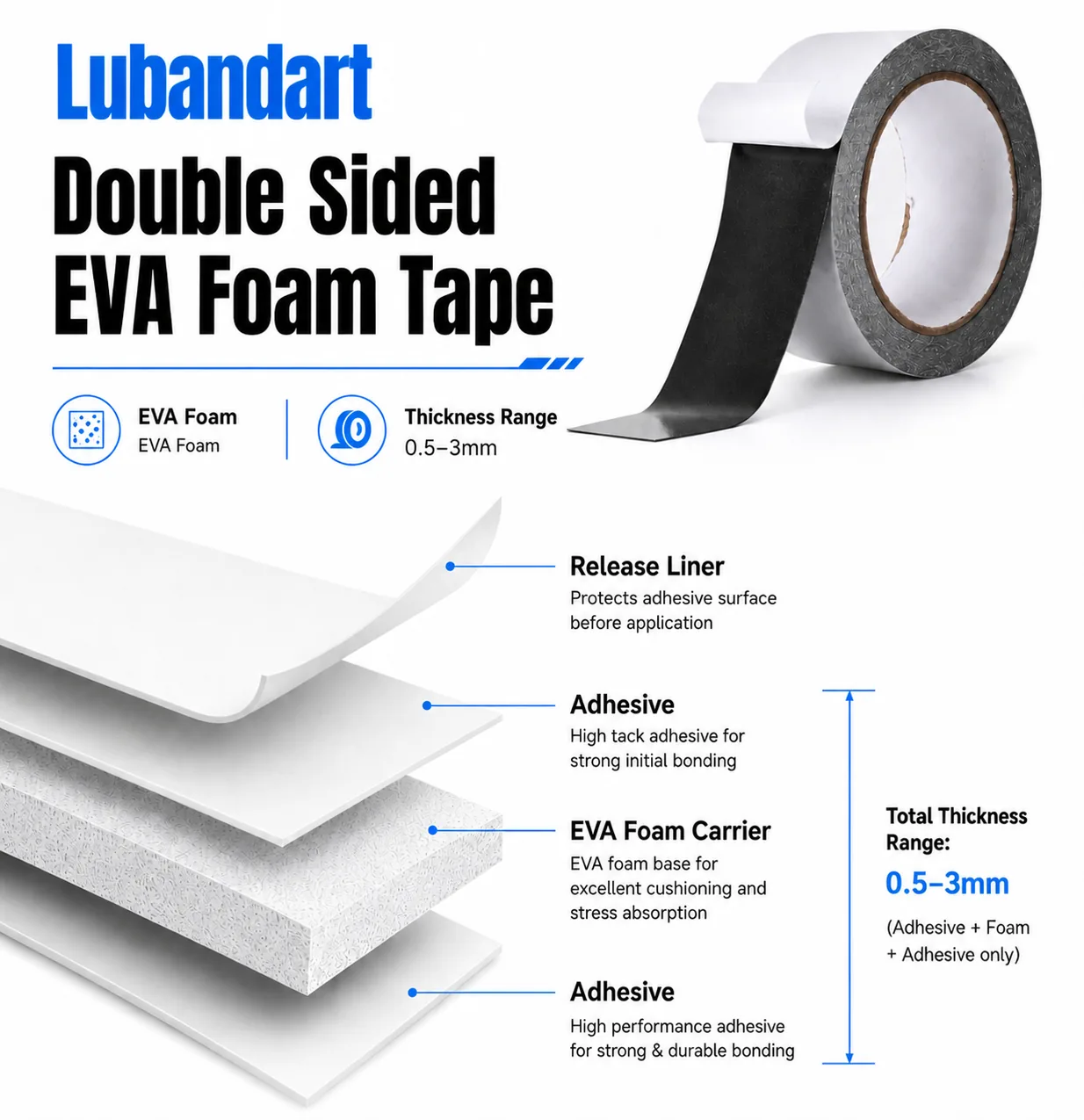

Double Sided EVA Tape Structure
Double-sided eva tape consists of a eva carrier coated on both sides with pressure-sensitive adhesive and protected by release liners.
Layer order shown for reference. Adhesive chemistry and carrier density are confirmed against the selected specification.
Technical Specifications
| Base Material | EVA foam |
|---|---|
| Thickness Range | 0.5 – 6.0 mm |
| Temperature Range | -20 ~ 80 ℃ |
| Adhesive System | Acrylic / Rubber |
| Color | White / Black (optional) |
Ranges above are typical. Final values are confirmed by the selected construction and test report. Non-standard thickness, width, roll length and die-cut formats are available.
Structure & Suitable Substrates
Visual references are provided for selection. Final construction and substrate suitability are confirmed against the project specification and sample test.
Samples, MOQ & Lead Time
Final commercial terms depend on tape construction, width, roll length, packaging and order quantity. Send the target specification for a confirmed quote.
Configure Double Sided EVA Tape for Your Application
Select adhesive system, carrier thickness, release liner and converting format for your substrate, environment and assembly process.
Select the options that matter to you — they are attached to your inquiry automatically.
Where Double Sided EVA Tape Works
From automotive trim to electronics assembly, the same construction adapts across industries.
- Packaging cushioning
- Industrial component padding
- Light panel mounting
- Window & door sealing
Double Sided EVA Tape Across Industries
Custom Supply & OEM
One coordinated production line handles coating, converting and export packaging under controlled quality.
From pilot sample to bulk shipment
One coordinated production line handles coating, converting and export packaging under controlled quality.
Typical MOQ
Depends on model, width, length, adhesive system and customization level. Trial orders on standard specs are welcome.
Sample Lead Time
Confirmed after reviewing the requested specification, stock position and sample format.
Bulk Production
Usually 7–10 working days, depending on specification, converting requirements and quantity.
OEM Customization
Width, thickness, roll length, adhesive system, density, color, liner, core, printing and packaging can all be customized.
From Requirement to Mass Production
A streamlined workflow designed to deliver reliable, high-performance adhesive solutions.
- 01
Requirement Analysis
Evaluate application environment, stress factors and bonding parameters.
- 02
Material Selection
Match carrier and adhesive chemistry to your technical requirements.
- 03
Sample Confirmation
Produce precision prototypes for client-side testing and validation.
- 04
Mass Production
Scaled manufacturing with controlled coating, laminating and converting.
- 05
Quality Inspection
Test peel adhesion, shear strength and dimensional accuracy.
- 06
On-Time Delivery
Pack per agreed requirements and prepare for shipping.
Frequently Asked Questions about Double Sided EVA Tape
Is EVA foam tape removable?
What is the temperature limit of EVA foam tape?
Is EVA tape suitable for cushioning and vibration damping?
Can EVA foam tape follow curved or textured surfaces?
Will EVA foam yellow or degrade in sunlight?
Is EVA foam tape die-cuttable for gaskets and pads?
