What PE Foam Tape Temperature Ratings Actually Mean

PE foam tape selection requires three separate limits: bonding temperature, brief excursions and continuous service. Check each against grade-specific data and the loaded joint’s pass criterion. A PE foam tape may survive a cold bend but still need warmer conditions to build an adhesive bond. It may tolerate a brief hot cycle but creep under a continuous load at a lower temperature. A single “temperature rating” cannot answer all three.

Treat three temperatures as different questions

LubandArt’s PE foam tape page gives a typical service range of -30 to 90 °C and says the final construction and test report control. Use that range as a prompt to request a grade-specific document, not as an unconditional guarantee for every foam thickness and adhesive option.

Compare published numbers with their conditions attached

3M’s 4496B technical sheet separates short-term temperature resistance from long-term temperature resistance and gives cold-flex data as a different test. Those values belong to 4496B. They illustrate why a single headline maximum can hide the duration and failure mode. 3M’s P7100B sheet separately gives suggested bonding conditions for one PE foam construction; application conditions are not the same as its service limits.

For a loaded vertical part, test creep or shear at the upper continuous-use temperature and then inspect edge lift after cooling. For a compression gasket, check sealing force after thermal aging and cycling. For a low-temperature assembly line, test initial tack and full dwell at the actual process temperature. These are distinct tests because they ask whether the adhesive bonds, whether the joint carries load and whether the foam retains geometry.

Read a temperature claim together with load and time

A temperature number without duration can mislead a buyer. A brief heat exposure during paint curing, a daily thermal cycle and continuous service beside a warm motor create different stresses. Adhesive creep under load depends on how the joint is oriented and how long it remains hot. Foam compression recovery can change after thermal aging even if the adhesive still sticks. Therefore, request the test specimen, substrate, applied load, exposure duration and acceptance criterion behind every temperature value.

Do not compare a “short-term maximum” from one grade with a “long-term maximum” from another as if they were the same measurement. Likewise, a cold-flex result shows whether a foam specimen cracks under a specified bend; it does not show whether a pressure-sensitive adhesive will wet a cold metal surface during assembly. The engineer needs to know which function each test measures before deciding that a grade is acceptable.

Build a test around the actual joint

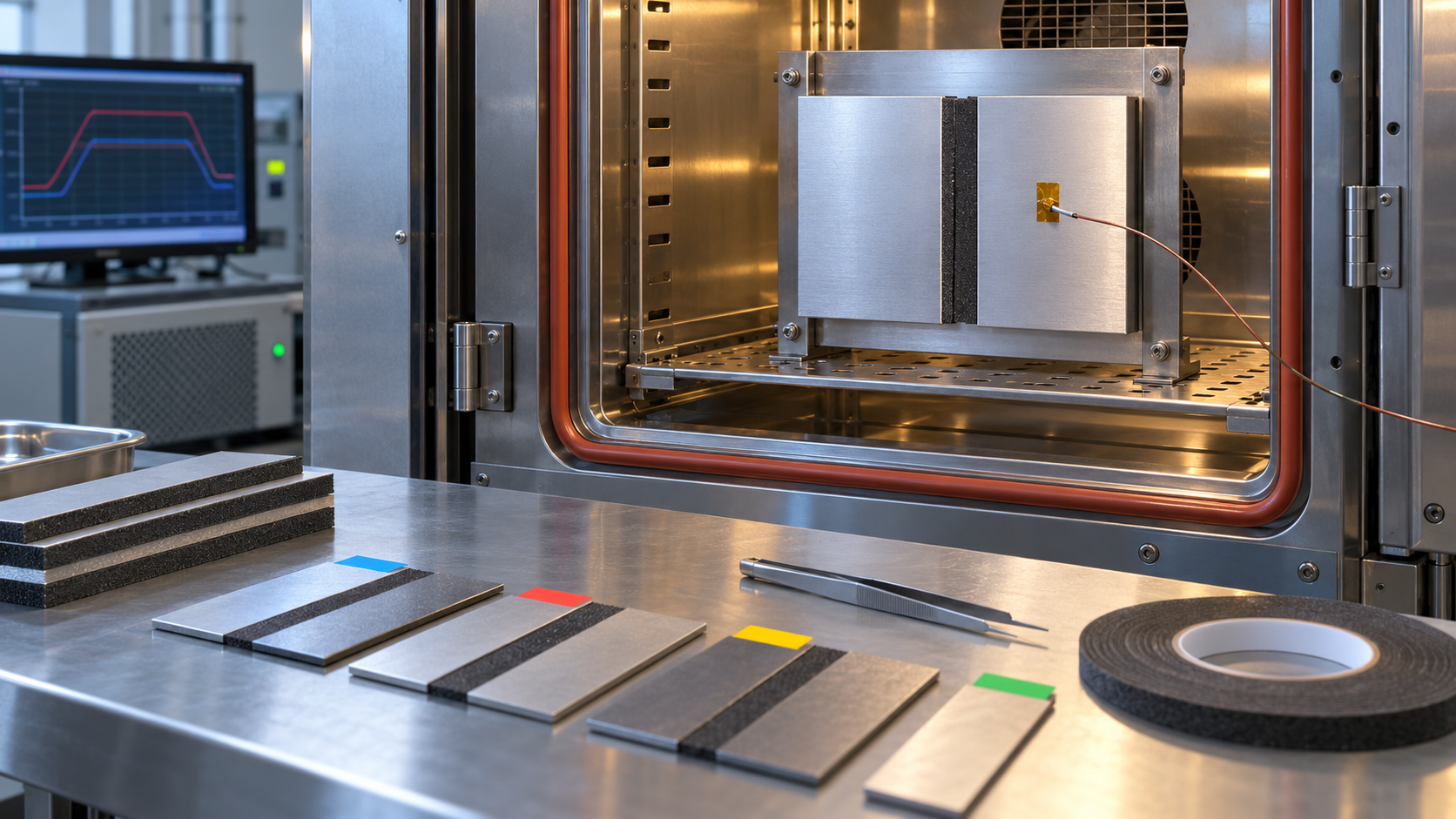

For an appliance trim, bond specimens under the plant’s minimum application temperature and pressure, wait for the specified dwell, then load them in the installed orientation. Expose one set to the highest continuous temperature and another to the planned brief excursion. Record edge lift, displacement and the failure interface after returning to room condition. For a sealing joint, include the assembled compression gap and repeat the leakage test after thermal cycling. This distinguishes a material that remains visually intact from a joint that still performs its function.

Use production substrates and finishes. Metal and plastic parts can expand differently; curvature or a long bond line can convert that movement into peel stress at an edge. A small flat coupon may therefore pass while the actual assembly lifts. If the tape is exposed to cleaners or humidity as well as temperature, combine those exposures in a realistic sequence rather than assuming independent single-factor passes are enough.

Screen suppliers without turning typical values into promises

Request a grade-specific technical sheet for the exact foam density, thickness, adhesive on each face and liner proposed. Ask which temperature statement is based on a standard test and which is an application recommendation. If the target condition exceeds the supplier’s documented limit, stop that candidate before tooling. If the target lies inside the limit, keep it in the trial but do not approve it until the real joint meets the buyer’s acceptance criteria.

Purchasing should carry the approved grade and revision into the order. A substitution with the same nominal PE foam thickness may use a different adhesive or foam structure and have different temperature behavior. Keep the report and test conditions with the approved drawing so later changes can be evaluated against the same duty, not against a remembered headline range.

Rule out a construction before tooling or volume purchase

Write the application temperature range, maximum brief excursion with duration, continuous-use range, load direction and pass criterion. Include the substrate and coating because their thermal expansion and surface chemistry are part of the joint. Ask the supplier for grade-specific data with test method, dwell time and specimen, then run a trial on the real assembly.

If the required continuous temperature exceeds the proposed construction’s documented range, reject that construction at screening. If it merely falls within a published range, keep qualification open: a range is not proof of bond strength, dimensional stability or long-term sealing in the buyer’s joint. This is the fastest way to avoid treating a cold-flex statement as a hot-load warranty.
